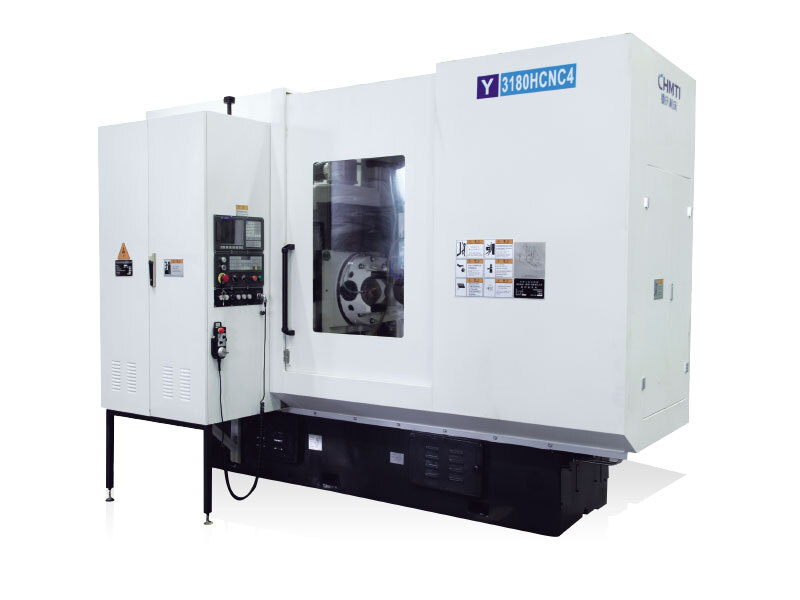

Y3180HCNC4
Upgrading CNC hobbing machine
Machine tools are mainly used for gear processing in passenger cars, commercial vehicles, construction machinery, marine machinery, agricultural machinery, hoisting machinery and other industries
CategoryRemanufacturing Machine Tool
Detail
Main performance and characteristics of machine tool:
◆ the machine tool is a four axis four linkage wet cutting CNC hobbing machine.
◆ the machining accuracy and stability of the machine tool are good.
◆ the machine tool is equipped with domestic CNC system as standard.
◆ the machine tool is equipped with totally enclosed shield.
◆ the machine tool can process cylindrical spur gear, helical gear, small taper gear, drum gear, sprocket, spline, worm gear, etc.
Main technical specifications and parameters of machine tool:
|
Serial number |
Main technical specifications |
Parameter specification |
|
|---|---|---|---|
|
Y3180HCNC4 |
|||
|
1 |
Maximum workpiece diameter |
mm |
800 |
|
2 |
Maximum workpiece modulus |
mm |
10 |
|
3 |
Maximum speed of hob spindle |
r/min |
200 |
|
4 |
Maximum speed of worktable |
r/min |
5.8 |
|
5 |
Maximum tool size (diameter) × Length) |
mm |
Φ180×180 |
|
6 |
Maximum manual tool shifting distance |
mm |
50 |
